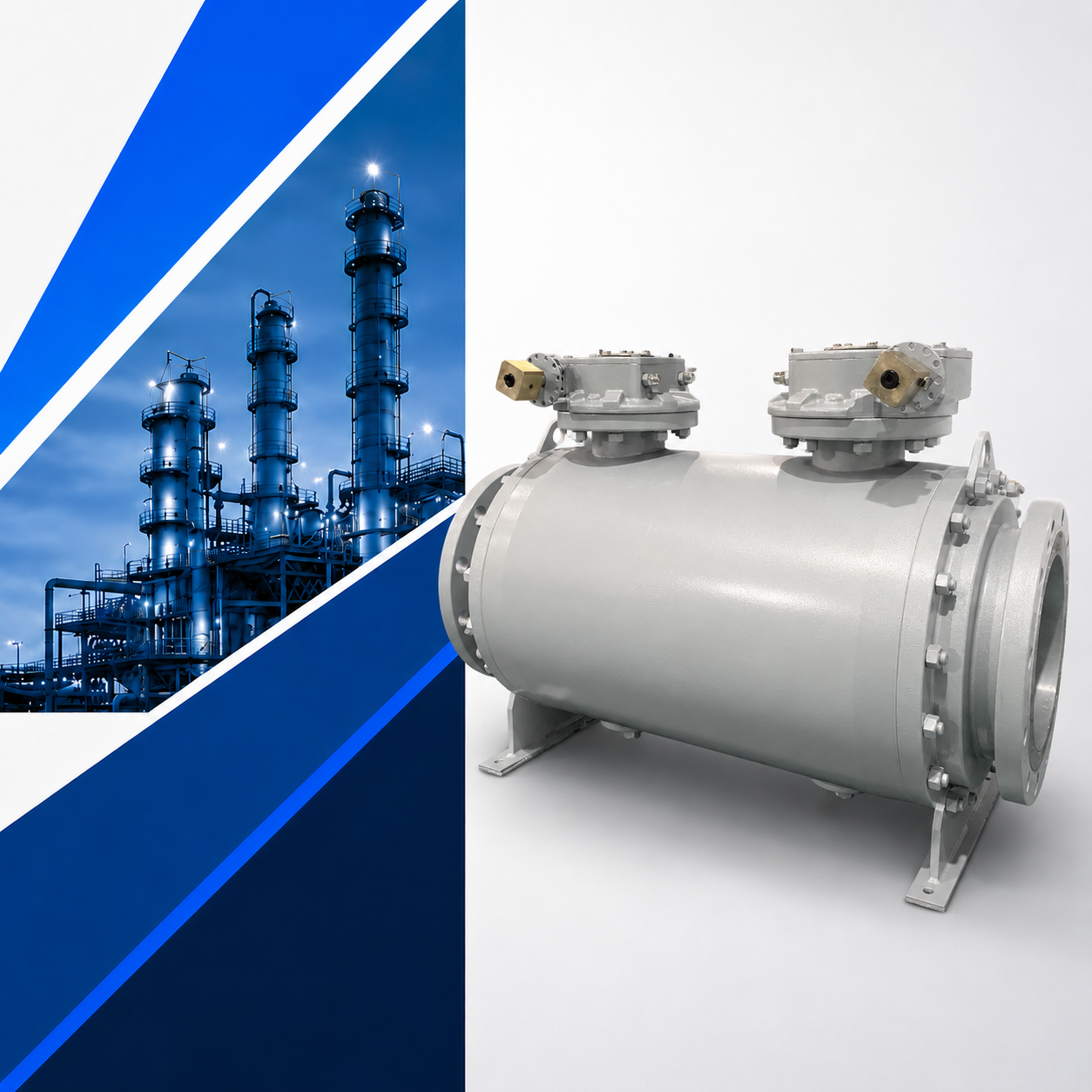

Twin Ball Valve

Features

  • Fire safe tested as per API 6FA or API 607
  • Low Fugitive Emission test according to ISO 15848-2
  • Soft seated or Metal-to-Metal seated
  • Seat construction DIB-1, DIB-2 or DBB
Categories: ,

Description

Technical Specification
Design Standard API 6D, API 608, ISO 17292
Face Fo Face ANSI B16.10
End Flange ANSI B16.5, ANSI B16.47
BW End ANSI B16.25
HUB End Grayloc, Vector Techlok
Test & Inspection API 598, API 6D, ISO 12266
Size Range 1/2” ~ 32”
Pressure Class Range ANSI 150 ~ ANSI 2500
Temperature Range -196°C ~ +550°C
Operation Manual, Gearbox or Actuated
